Car Air Conditioning Evaporator Replacement in Canberra
If your car’s air conditioning has stopped cooling properly, smells musty, leaks inside the cabin, or has been diagnosed with an internal evaporator fault, we can help. Advanced Mobile Autocare provides practical mobile A/C diagnosis and evaporator replacement support across Canberra.
Evaporator replacement is usually one of the more time-consuming A/C jobs because the evaporator sits deep inside the dash and HVAC housing. In many vehicles, dashboard trim, glovebox sections, centre console sections or the heater/air box need to be removed to gain proper access. That is why we normally inspect first, explain the likely labour involved, and then provide a clear quote.
Mobile Inspection
We inspect first and explain likely repair scope.
Dashboard Access Work
A more labour-intensive A/C repair on many vehicles.
A/C Testing After Repair
System vacuum, regas and performance check after completion.
Why Evaporator Replacement Is a Bigger A/C Job

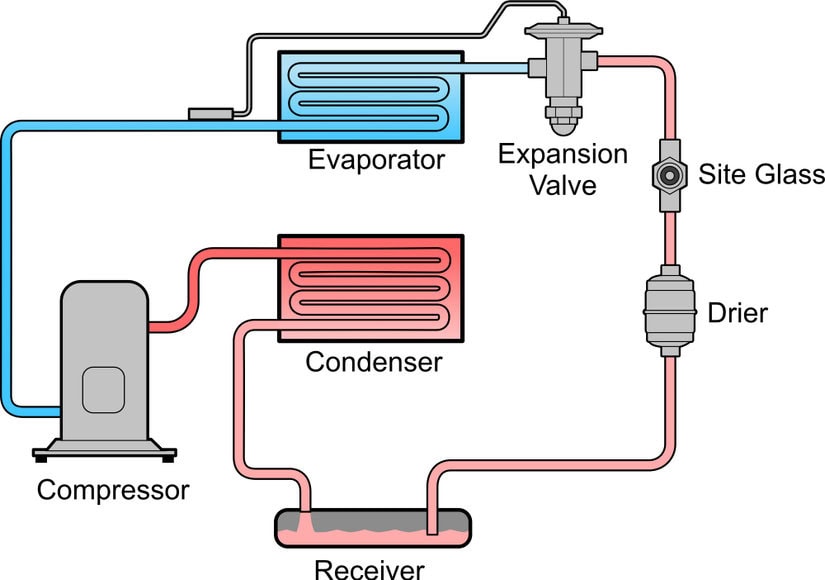

The evaporator is a core part of the air conditioning system. It is typically hidden inside the dashboard, where cabin air passes across it to create cold air. Because of its location, repair access is often much harder than replacing components like a condenser or receiver-dryer.
1. Deep Dash Access
In many vehicles, the evaporator sits inside the HVAC box behind the dash. Access may require removal of dash trims, glovebox sections, centre panels, parts of the dashboard frame, or even more extensive interior disassembly.
2. Refrigerant & HVAC Work
The system must be safely recovered, opened correctly, then reassembled with proper sealing. Depending on the job, related parts such as O-rings, the TX valve, or receiver-dryer may also be recommended.
3. Reassembly & Final Testing
After replacement, the system still needs vacuum testing, regassing and performance checks. Interior panels also need to be refitted carefully, which is why labour time can vary a lot from one model to another.
Real HVAC Dashboard-Out Case in Canberra

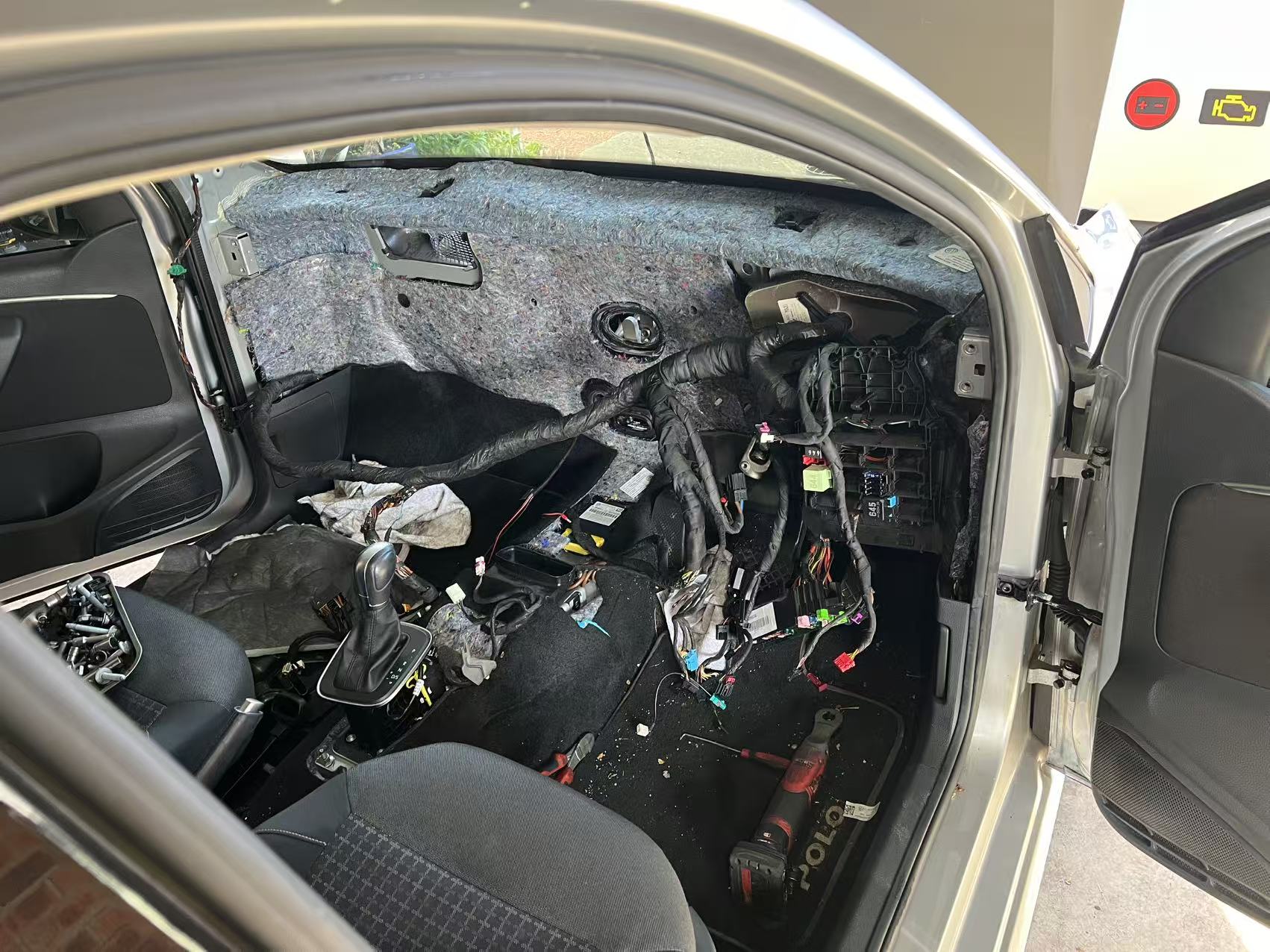

This is a real job photo from a Volkswagen Polo heater core replacement. While a heater core is not the same component as an A/C evaporator, the job complexity is very similar because both are located in the HVAC housing area behind the dashboard.
Volkswagen Polo Heater Core Replacement – Similar HVAC Access Work
This Polo repair is a good example of the type of labour involved when working inside the HVAC housing area. Jobs like heater core or evaporator replacement usually are not quick “bolt-on” repairs. They often involve a large amount of access work before the actual faulty component can even be removed.
On this kind of job, much of the time goes into safely removing the required trim and dash sections, opening the HVAC case, replacing the faulty internal component, then reassembling everything correctly. After that, the vehicle still needs final testing to confirm the repair has been completed properly.
- Interior and dashboard access work required
- HVAC housing area opened to reach the internal core
- Careful reassembly needed after replacement
- Good example of why evaporator jobs usually need inspection first
Common Signs of an Evaporator Problem
Not every weak A/C system has a failed evaporator, but these are some common signs that can justify closer inspection.
Signs You May Notice
- Weak or no cold air from the vents
- Musty smell when the A/C is running
- Moisture or leaking inside the cabin area
- Repeated refrigerant loss with no obvious front-end leak
- Fogging issues or unusual HVAC performance
What We Normally Check First
- System pressures and overall cooling performance
- History of refrigerant loss or previous A/C repairs
- Signs of internal HVAC leakage or moisture
- Whether other parts like condenser, compressor or TX valve may also be involved
- Vehicle-specific access complexity before quoting labour
Why evaporator jobs are usually quoted after inspection
Access time can vary a lot depending on vehicle design, dashboard layout and whether extra parts should be replaced while the HVAC unit is open. We inspect first, then give practical advice and a clearer quote.
- Evaporator replacement is usually a quote-only job due to labour variation.
- Some vehicles may also need related seals, receiver-dryer or TX valve depending on condition.
- Final pricing depends on make, model, refrigerant type and access complexity.
Evaporator Replacement FAQs
A few common questions about evaporator diagnosis, labour time and why these jobs are often more involved than a standard regas.
