Car Air Conditioning Evaporator Replacement in Canberra
• Inspection recommended first
If your car’s air conditioning has stopped cooling properly, smells musty, leaks inside the cabin,
or has been diagnosed with an internal evaporator fault, we can help.
Advanced Mobile Autocare provides practical mobile A/C diagnosis and
evaporator replacement support across Canberra.
Evaporator replacement is usually one of the more time-consuming A/C jobs because the evaporator sits
deep inside the dash and HVAC housing. In many vehicles, dashboard trim, glovebox sections,
centre console sections or the heater/air box need to be removed to gain proper access.
That is why we normally inspect first, explain the likely labour involved, and then provide a clear quote.
We inspect first and explain likely repair scope.
A more labour-intensive A/C repair on many vehicles.
System vacuum, regas and performance check after completion.
Why Evaporator Replacement Is a Bigger A/C Job

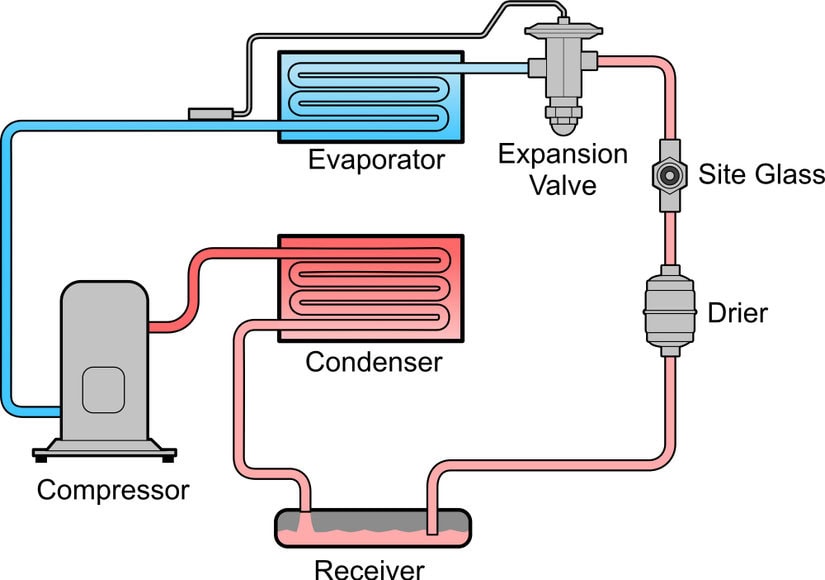

The evaporator is a core part of the air conditioning system. It is typically hidden inside the dashboard,
where cabin air passes across it to create cold air. Because of its location, repair access is often much harder
than replacing components like a condenser or receiver-dryer.
1. Deep Dash Access
In many vehicles, the evaporator sits inside the HVAC box behind the dash. Access may require removal of
dash trims, glovebox sections, centre panels, parts of the dashboard frame, or even more extensive interior disassembly.
2. Refrigerant & HVAC Work
The system must be safely recovered, opened correctly, then reassembled with proper sealing.
Depending on the job, related parts such as O-rings, the TX valve, or receiver-dryer may also be recommended.
3. Reassembly & Final Testing
After replacement, the system still needs vacuum testing, regassing and performance checks.
Interior panels also need to be refitted carefully, which is why labour time can vary a lot from one model to another.
Real HVAC Dashboard-Out Case in Canberra
This is a real job photo from a Volkswagen Polo heater core replacement.
While a heater core is not the same component as an A/C evaporator, the job complexity is very similar because both are located in the HVAC housing area behind the dashboard.
Volkswagen Polo Heater Core Replacement – Similar HVAC Access Work
This Polo repair is a good example of the type of labour involved when working inside the HVAC housing area.
Jobs like heater core or evaporator replacement usually are not quick “bolt-on” repairs.
They often involve a large amount of access work before the actual faulty component can even be removed.
On this kind of job, much of the time goes into safely removing the required trim and dash sections,
opening the HVAC case, replacing the faulty internal component, then reassembling everything correctly.
After that, the vehicle still needs final testing to confirm the repair has been completed properly.
- Interior and dashboard access work required
- HVAC housing area opened to reach the internal core
- Careful reassembly needed after replacement
- Good example of why evaporator jobs usually need inspection first
labour varies heavily by model. A small hatchback, European car, dual-zone system or tightly packaged dash
can change the time required significantly.
Common Signs of an Evaporator Problem
Not every weak A/C system has a failed evaporator, but these are some common signs that can justify closer inspection.
Signs You May Notice
- Weak or no cold air from the vents
- Musty smell when the A/C is running
- Moisture or leaking inside the cabin area
- Repeated refrigerant loss with no obvious front-end leak
- Fogging issues or unusual HVAC performance
What We Normally Check First
- System pressures and overall cooling performance
- History of refrigerant loss or previous A/C repairs
- Signs of internal HVAC leakage or moisture
- Whether other parts like condenser, compressor or TX valve may also be involved
- Vehicle-specific access complexity before quoting labour
Why evaporator jobs are usually quoted after inspection
Access time can vary a lot depending on vehicle design, dashboard layout and whether extra parts
should be replaced while the HVAC unit is open. We inspect first, then give practical advice and a clearer quote.
- Evaporator replacement is usually a quote-only job due to labour variation.
- Some vehicles may also need related seals, receiver-dryer or TX valve depending on condition.
- Final pricing depends on make, model, refrigerant type and access complexity.
Evaporator Replacement FAQs
A few common questions about evaporator diagnosis, labour time and why these jobs are often more involved than a standard regas.
or repeated refrigerant loss with no obvious external leak. That said, these symptoms can also be caused by other A/C faults,
so inspection is the best starting point.
the dashboard and HVAC housing access can take much longer. Because of that variation, a proper quote is usually given after inspection.
trim removal and HVAC box access. That is why we prefer to inspect first before promising an exact time frame.
the receiver-dryer, or occasionally the TX valve. The point is not to oversell parts, but to reduce the chance
of reopening the system again shortly after the main repair.
corroded or otherwise faulty, replacement is usually the proper fix. We assess the condition first before advising.
regassed to specification and tested for cooling performance.
Need help with an A/C evaporator issue in Canberra?
Call us for practical advice, mobile inspection and a quote based on your vehicle and the likely access required.
